Aurelia X6 Standard - Ready To Fly
Aurelia X6 Standard - Ready To Fly
Key Features:
Giving Flight To Client Ideas Worldwide - Professional Drone Solutions
Giving Your
Ideas Flight!
Transform your aerial operations with the Aurelia X6 Standard, a robust industrial drone for professional applications. This versatile heavy lift platform delivers exceptional payload capacity up to 5 kg (11 lb), perfect for commercial inspections, surveying, and specialized missions.

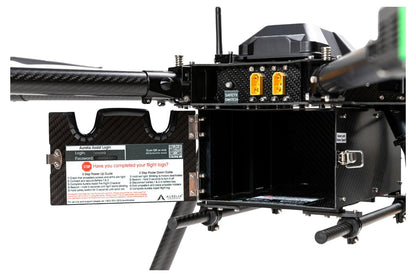

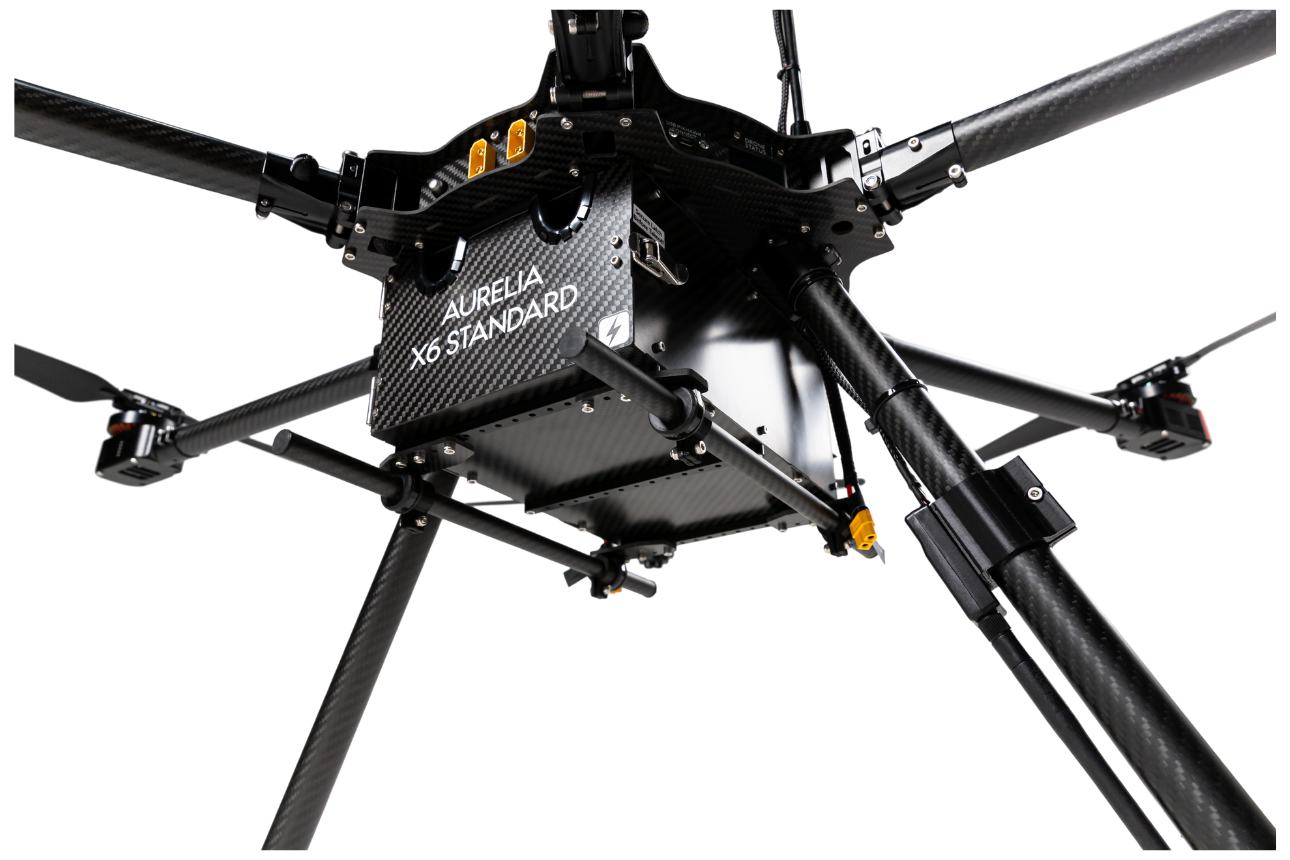

The spacious payload bay accommodates diverse equipment from cameras to scientific instruments.Ready to fly convenience meets future proof innovation with open source hardware ensuring long term adaptability.
The Aurelia X6 Standard arrives fully assembled with minimal setup. Simply mount your payload and launch! This professional grade platform combines reliability and versatility for operators demanding performance.
Pixhawk
Flight Controller
Customize your flight operations with the Aurelia X6 Standard's open source Pixhawk flight controller, delivering unlimited possibilities for mission specific configurations.
The standard setup includes Ardupilot software, with PX4 installation available upon request.
Choose from various Pixhawk controllers, each detailed below for your operational requirements.
US-Made
Components
Supporting domestic supply chains with extensive use of U.S. manufactured components throughout the Aurelia X6 Standard systems.

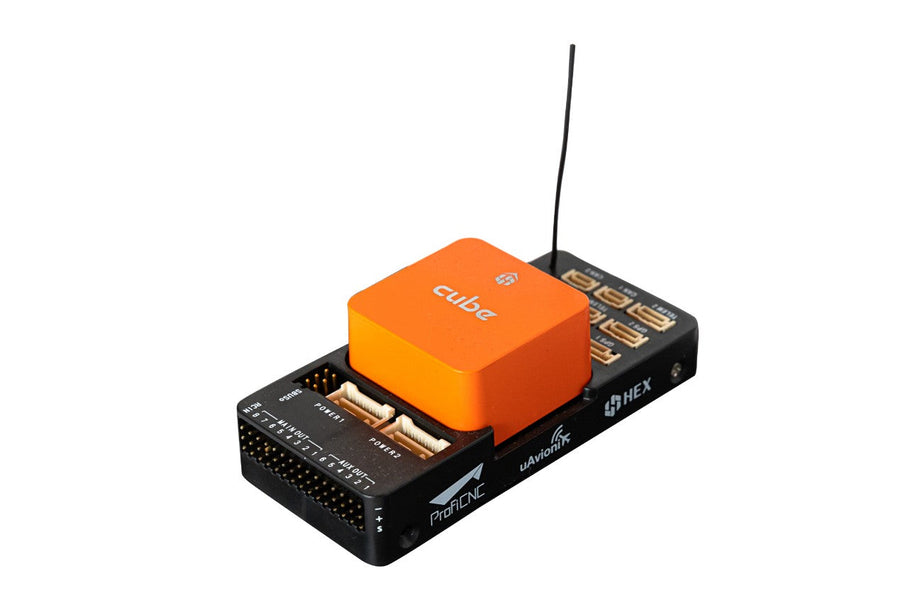

The standard configuration features the Cube Orange+ flight controller, with the upgraded Cube Blue available for enhanced performance.
Key electronic components are sourced from American manufacturers, delivering the reliability and security standards customers require.
Aurelia Aerospace drones are fully NDAA 848 and TAA compliant for government and commercial operations.
Intelligent
Operational Features
Some enhanced design features make the Aurelia X6 Standard exceptionally user friendly. The integrated LCD status display provides instant flight data including current flight mode, GPS satellite count, failsafe alerts, and battery levels for complete situational awareness.
Field maintenance stays simple with the built in mini toolkit containing all necessary hex wrenches for the aircraft. This onboard tool set enables quick repairs and propeller swaps during remote operations, ensuring mission continuity even when field tools are unavailable.
For enhanced operational capability, we offer a comprehensive Flight + Servicing Kit that significantly elevates your flight operations with advanced tools and equipment designed for professional deployment.
Superior Flight Safety

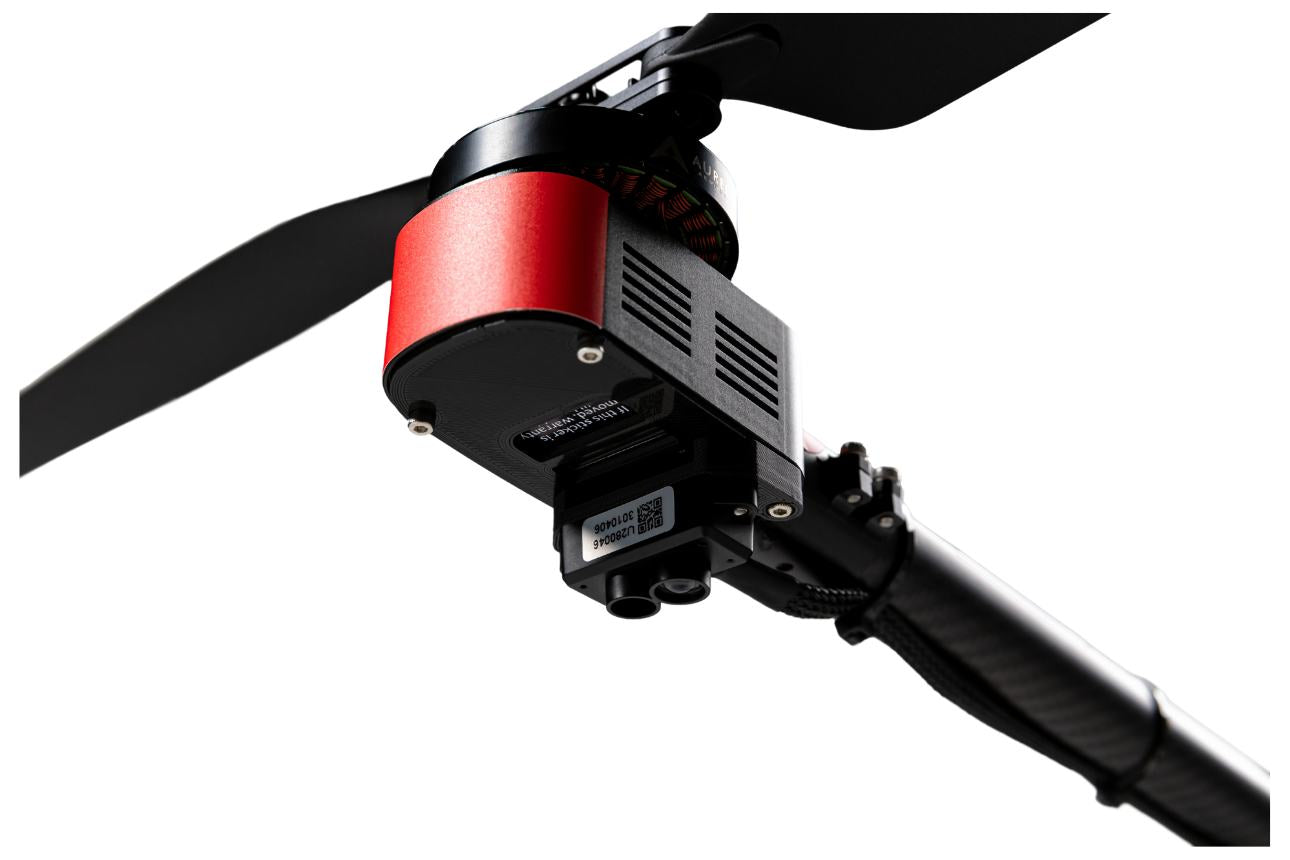

Motor redundancy sets the Aurelia X6 Standard apart from traditional quadcopter designs.
While standard four motor drones face immediate crash risk during single motor failure, the advanced six motor hexacopter configuration ensures continued stable flight operations.
This professional grade redundancy system provides critical safety margins for valuable payload protection and mission completion, delivering the reliability commercial operators demand for high stakes aerial operations.
Lifetime
Product Support
Comprehensive lifetime product support ensures maximum operational success with your Aurelia X6 Standard investment. Every customer receives a personalized onboarding session with our expert technicians via video consultation to review aircraft operations and address pre flight questions.
Ongoing technical assistance remains instantly accessible through the integrated QR code system on your airframe, connecting you directly to professional support whenever needed.
This complete support package stays active throughout your aircraft's operational life at no additional cost, providing long term value for professional drone operations.
Rapid Deployment
and Portability
Rapid deployment and transport capability makes the Aurelia X6 Standard perfect for mobile operations and field missions. The innovative quick release arm system enables complete folding transformation in under 30 seconds with simple one click buttons at each arm joint.

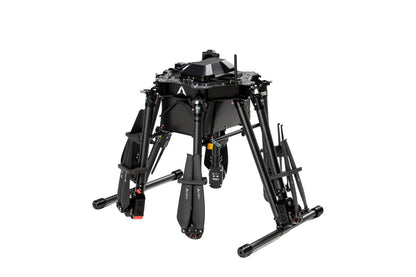

This foldable drone design dramatically reduces storage footprint and simplifies transportation between job sites, fitting easily into standard vehicle cargo areas or flight cases. The streamlined setup and breakdown process maximizes operational efficiency for professional pilots who need fast deployment capabilities across multiple locations.
Whether responding to emergency situations or conducting routine inspections, this portable hexacopter configuration ensures your drone operations remain agile and responsive.
Advanced Flight Modes &
Mission Planning Software
Unlock unlimited operational possibilities with over 20 specialized flight modes, including revolutionary swarm technology for simultaneous multi-aircraft operations. Every Aurelia aircraft features intelligent flight modes designed to tackle any mission with precision and efficiency.
Take control with industry-leading mission planning software. QGroundControl works across all devices with Google Maps integration, altitude control, and automated route programming, while Mission Planner offers enhanced professional features. Both free platforms maximize operational efficiency and adapt to your needs with unmatched flexibility.
Try Before You Buy
Experience our drone technology risk-free with Aurelia Aerospace's 30-day trial program. We offer qualified businesses, government entities, and educational institutions the opportunity to evaluate our systems in real-world conditions at absolutely no cost, no prepayment, commitments, or deposits required.
Work with our drone specialists to identify the ideal platform for your requirements, and we'll arrange delivery of a complete system for evaluation. This hands-on experience allows you to validate performance and ensure our solution aligns with your operational needs before making any investment.
Contact our specialists today to discuss your trial program eligibility and get started.
Trusted by Leading Organizations Worldwide
As a platform relied upon by premier research institutions, Fortune 500 companies, and government agencies, Aurelia Aerospace has invested extensive engineering expertise into every aspect of our aircraft design.
Aurelia Aerospace is built on four fundamental pillars that embody our promise to deliver autonomous flight technology that exceeds expectations. Experience the difference that comes from partnering with a company dedicated to advancing autonomous flight technology.
- Reliability forms the foundation of our unwavering commitment, ensuring consistent mission success in demanding environments.
- Sophistication drives our integration of cutting-edge technology and intelligent systems.
- Performance delivers the power, endurance, and precision needed for critical applications.
- Versatility provides flexibility to tackle diverse missions with modular solutions that grow with your needs.
6-Month Warranty
All Aurelia aircraft include a reliable 6-month comprehensive manufacturer warranty covering component failures during initial operations. An extended 2-year warranty option is also available for long-term investment protection.
Fly with confidence knowing your professional aircraft is backed by comprehensive coverage designed to keep you operational.
Mission Planning Software
Aurelia Aerospace is an official ArduPilot partner, utilizing the world's most advanced and reliable open-source flight software. ArduPilot continuously evolves through a global community of expert developers, ensuring optimal performance and reliability.
Experience cutting-edge flight control systems trusted by professionals worldwide.
EDU / GOV Pricing
Aurelia Aerospace offers exclusive pricing programs for educational institutions, government agencies, and non-profit organizations. Our solutions make advanced drone technology accessible for research, public service, and community initiatives.
Contact our representatives today to learn about institutional pricing and support options.
Specifications
If you have a payload that requires a larger space than the 270mm offered, please check our optional XL Landing Gear option offered at the bottom of this page. With the XL Landing gear option your payload clearance will increase to 430mm.
| Specs | |
|---|---|
| Max Flight Time | Standard Batteries: 30 Minutes LE Batteries: 45 Minutes |
| UAV Empty Weight | 4200g | 9.26 lb |
| UAV Weight Incl Batteries | Standard Batteries: 6725g | 14.83 lb LE Batteries: 7200g | 15.87 lb |
| Payload Capability | 5000g | 11.00 lb |
| UAV MTOW | Standard Batteries: 11724g | 25.85 lb LE Batteries: 12200g | 26.90 lb |
| Max Flight Speed | 35 mph | 56 km/h |
| Max Wind Resistance | 20 mph | 32 km/h |
| Max Service Ceiling | 3000m ASL |
| Data Link Encryption | AES-128: HereLink Black, Skydroid H16, HereLink Blue, and RFD900X AES-256: UXV Navigator Tab 3 |
| Specs | |
|---|---|
| Operating Frequencies | 915 MHz (Worldwide)
433 MHz (Europe) 2.4 GHz (HereLink Ground Station Only) |
| Operating Range | Standard - 1.5 mi (2.4 km) with HereLink - 3.0 mi (5 km) |
| Battery Type | Standard Batteries: Lithium Polymer (LiPo) LE Batteries: Lithium Ion (Li-Ion) |
| Battery Capacity | Standard Batteries: 2x 10,000 mAh LE Batteries: 2x 16,000 mAh |
| Battery Voltage | 22.2V |
| IP Rating | IP43 |
| Operating Temperature | -15C to +50C |
| Specs | |
|---|---|
| GPS | uBlox M9N |
| GPS Constellations | GPS, GLONASS, Galileo, BeiDou |
| Rangefinder LiDAR Accuracy | +/- 4 cm |
| Rangefinder LiDAR Range | 0 - 12 Meters |
| Compass | RM3100 |
| Redundancy | 2 Accelerometer / 2 Gyroscope / 1 Mag |
| ADS-B | uAvionix 1090 with a 12 mile (20 km) range |
| Europe/UK Drone Class | C3 Class |
| Export Control Classification (ECCN) | EAR99 |
Remote ID Compliant
All Aurelia drones are Remote ID compliant. Every Aurelia drone shipped to the USA includes a Remote ID module as standard equipment.
If you purchased an Aurelia drone previously, Remote ID units are also available for separate purchase and can be easily mounted on your existing drone to ensure compliance.
Advanced Operations Compliance - Canada
All Aurelia drones are certified with RPAS Safety assurance from Transport Canada, enabling advanced operations in controlled airspace (Class A-F) and flights near people with confidence.
Technical Documentation & Product Information
Ready to explore the full capabilities of Aurelia's professional drone systems? Access comprehensive technical resources including user manuals, engineering drawings, specifications, and operational guides for our complete aircraft lineup.
Whether evaluating a specific model or comparing our entire range, our documentation package provides everything needed for informed decisions.
Complete the form and our specialists will promptly send you the complete information package tailored to your requirements, or jump into our live chat to speak with a drone specialist directly.
Payload Railings for
Easy Mounting
The Aurelia X6 Standard includes 2 payload railings installed under the battery bay. Attach payloads easily by mounting your payload to the 2 rods, and adjusting the center of gravity as needed.
Payload Railings for
Easy Mounting

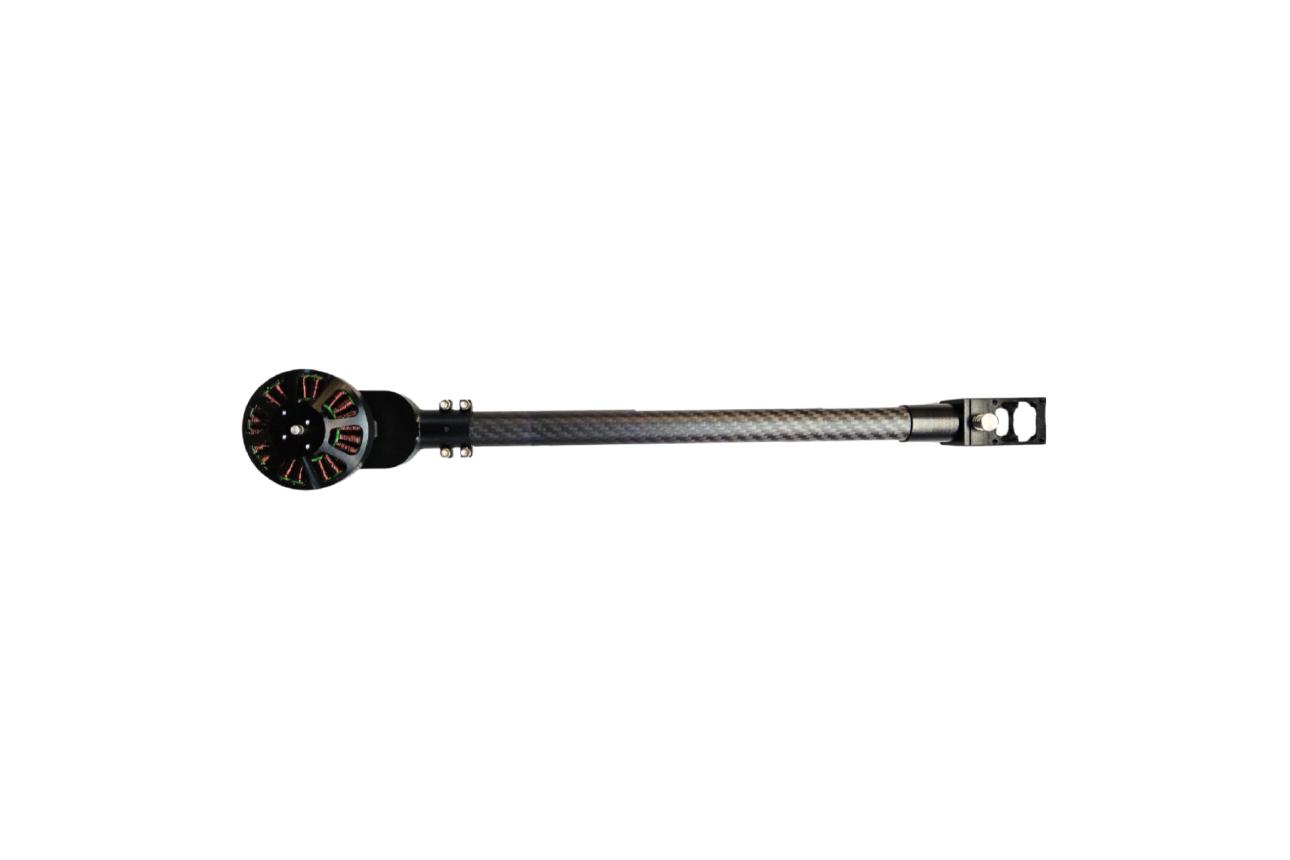

The hexacopter design allows the Aurelia X6 Standard to operate with only 5 motors, allowing for increased reliability and protection of your payload in the event a motor gets damaged.
In the event the Aurelia X6 Standard is involved In a crash, the propellers are designed to shear, protecting the motors and electronics from costly damage.
Precision
Flying
The inclusion of a rangefinder LiDAR gives the Aurelia X6 Standard accuracy of 4 cm in the vertical axis up to an altitude of 12 meters, allowing for smooth landings and steady flying/terrain following at low altitudes.
Aurelia Assist™
Enhanced Drone Operations
(including Ray-Ban Meta)
Your Co-Pilot on the Ground and in the Sky
Aurelia Assist™ is your comprehensive flight companion that guides you through every stage of your drone operation.
From pre-flight safety checklists to post-flight analysis, this intelligent assistant ensures you never miss a critical step. Access user manuals, international drone regulations, and operational guidance hands-free while maintaining full focus on your flight. Capture important moments with in-flight recording and receive real-time alerts and flight data directly in your field of view.
With Aurelia Assist™ as your trusted flight companion, every mission becomes safer, more efficient, and expertly guided from takeoff to landing.
- Digital Logbook: Track flights, pilot information, mission details, and maintenance records automatically.
- Hands-Free Recording: Document operations and capture support footage using compatible smart glasses.
- Live Weather Updates: Get real-time wind, visibility, and temperature information for better planning.
- Drone Regulation Access: Quickly reference relevant drone regulations within the app.
- Remote Support: Enable diagnostics and connect with support teams for assistance.
Travel Case Options
Aurelia Drones In Action
What's Standard Included?
When you select a Starter Bundle, these essential components come standard to get you operational right away.
Please note that purchasing the aircraft alone does not include these items.
They are specifically part of our comprehensive bundle packages designed for immediate deployment.
Contact our drone specialists to learn more about individual aircraft pricing versus bundle options.
Find the perfect configuration for your needs.
- 1x Aurelia X6 Standard UAV

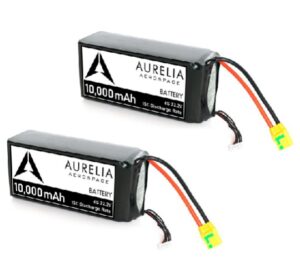

Configured & Ready To Fly - 2x Aurelia 10,000 mAh 6S Li-Po Batteries
(or 2x Aurelia 16,000 mAh 6S Li-Ion Batteries -
LE Option) - 1x SkyRC T200 LiPo Balance Charger
- 2x LiPo Firesafe Storage Bags With Handle
- 2x 18650 Li-Ion Controller Batteries
(Radiomaster Option) - 1x Radiomaster TX16S Transmitter
(Radiomaster Option) - 1x Radiomaster TX16S Transmitter Case
(Radiomaster Option) - 1x Aurelia Aerospace Safety Vest
- 1x Aurelia Aerospace Lanyard
- 2x Aurelia Aerospace Stickers
- 1x Mini Tool Kit
- 6x Propeller Arm Holders
- 1x Ground Telemetry Radio
(915 MHz / 433 MHz (EU)) - 1x 8GB Micro SD Card
- 1x Cleaning Cloth + Airframe Cleaner
Configure Your Selected Aircraft
in 6 Easy Steps
If you need assistance configuring your selected Aurelia aircraft or have questions about any available options, don't hesitate to reach out to our drone specialists.
Our expert team is ready to guide you through every step of the configuration process and help you select the perfect setup for your specific operational requirements.
1 - Choose Your Bundle
Starter Bundle
- All of the items above
Explorer Bundle
All of the items in the first image, plus the following in the second image;
- 1x Travel Case + AirTag
- 1x Additional Battery Set (2 pcs)
- 2x LiPo Battery Bags
- 1x Spare Propeller Set (6 pcs)
- 3x Propeller Protection bags
- 1x Aurelia Drone Landing Pad
Save $520 with the Explorer Bundle
Ultimate Bundle
All of the items in the first image, plus the following in the second image;
- 1x Travel Case + AirTag
- 2x Additional Battery Sets (4 pcs)
- 4x LiPo Battery Bags
- 2x Spare Propeller Sets (12 pcs)
- 6x Propeller Protection bags
- 1x Aurelia Drone Landing Pad

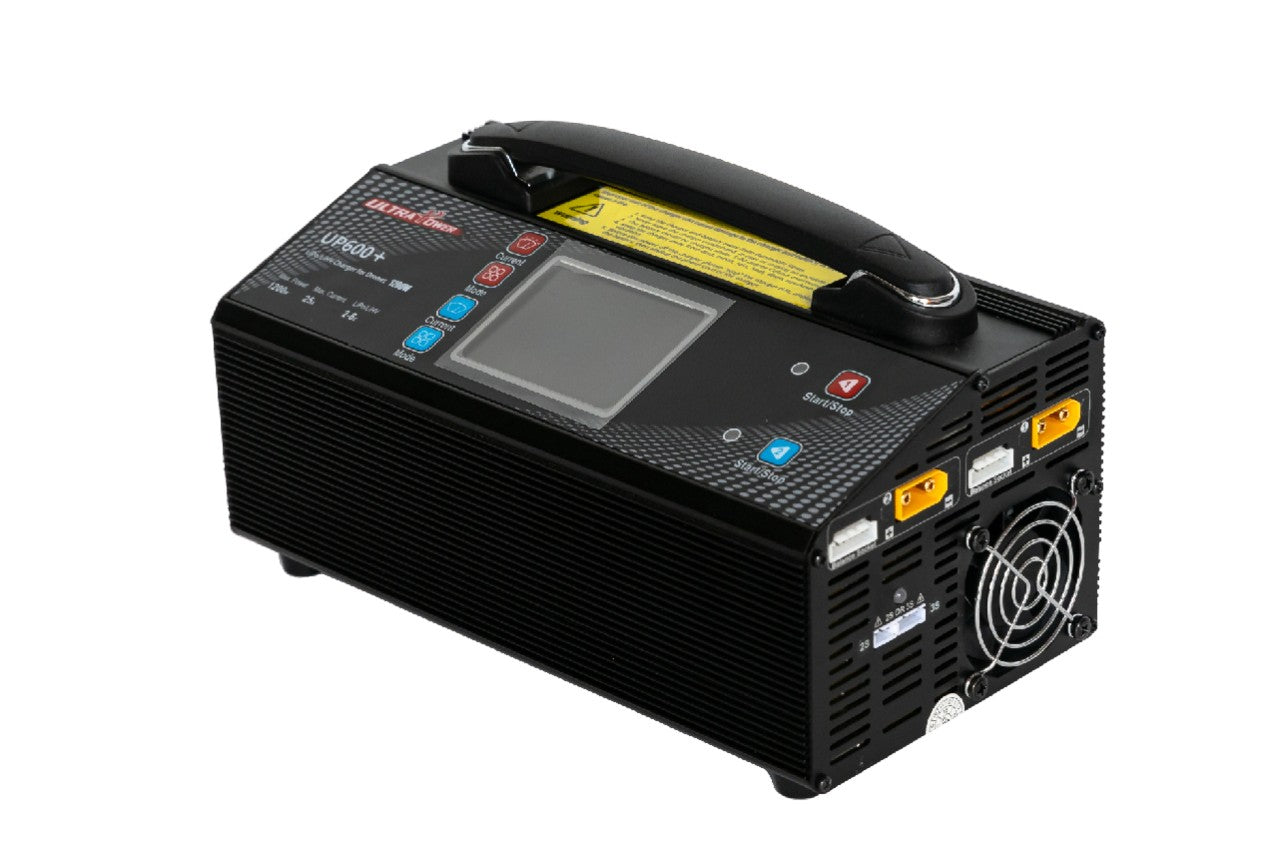

- 1x Battery Fast Charger
Save $780 with the Ultimate Bundle
2 - Optional Services

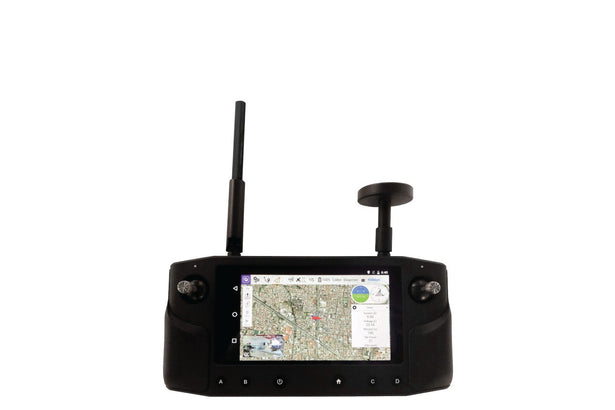

3 - Choose Your Transmitter
4 - Choose Your Flight Controller
5 - Choose Your Payload
Professional Drone Payloads &
Custom Engineering Solutions
Enhance your drone operations with our professional-grade payloads for aerial photography, medical deliveries, surveying, and agricultural sensors. Our engineering team creates custom solutions tailored to your specific operational needs.
From imaging systems to delivery mechanisms, we provide cutting-edge technology that elevates your business. Whether conducting inspections, medical transport, agriculture, or surveying, our specialists engineer the perfect solution for you.
Contact our payload experts today to discuss your requirements and discover how our innovative solutions can transform your aerial operations.
6 - Additional Parts & Accessories
The following are additional parts and accessories for your selected aircraft.
If you have any questions about configuring these, please do not hesitate to reach out to one of our drone specialists.
