Giving Your
Ideas Flight!

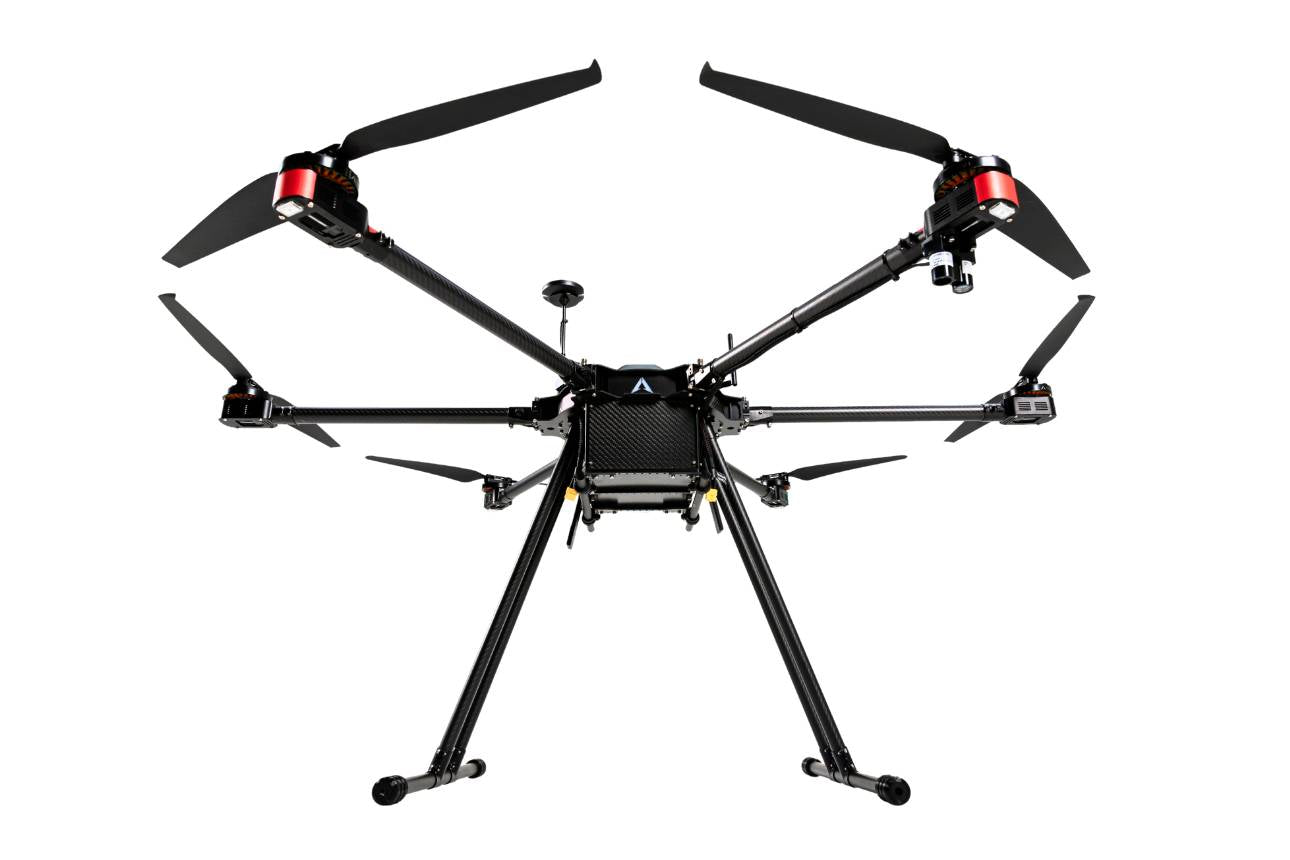

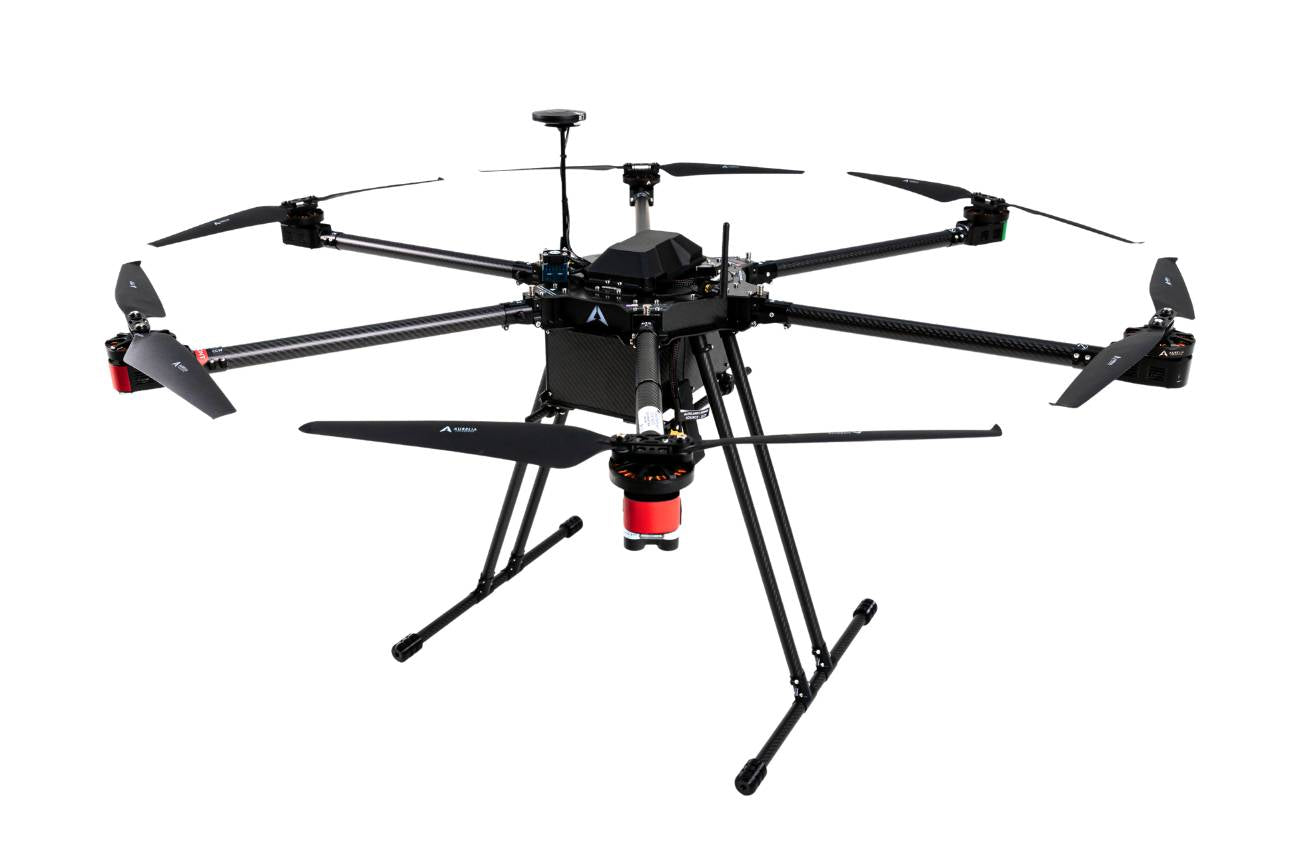

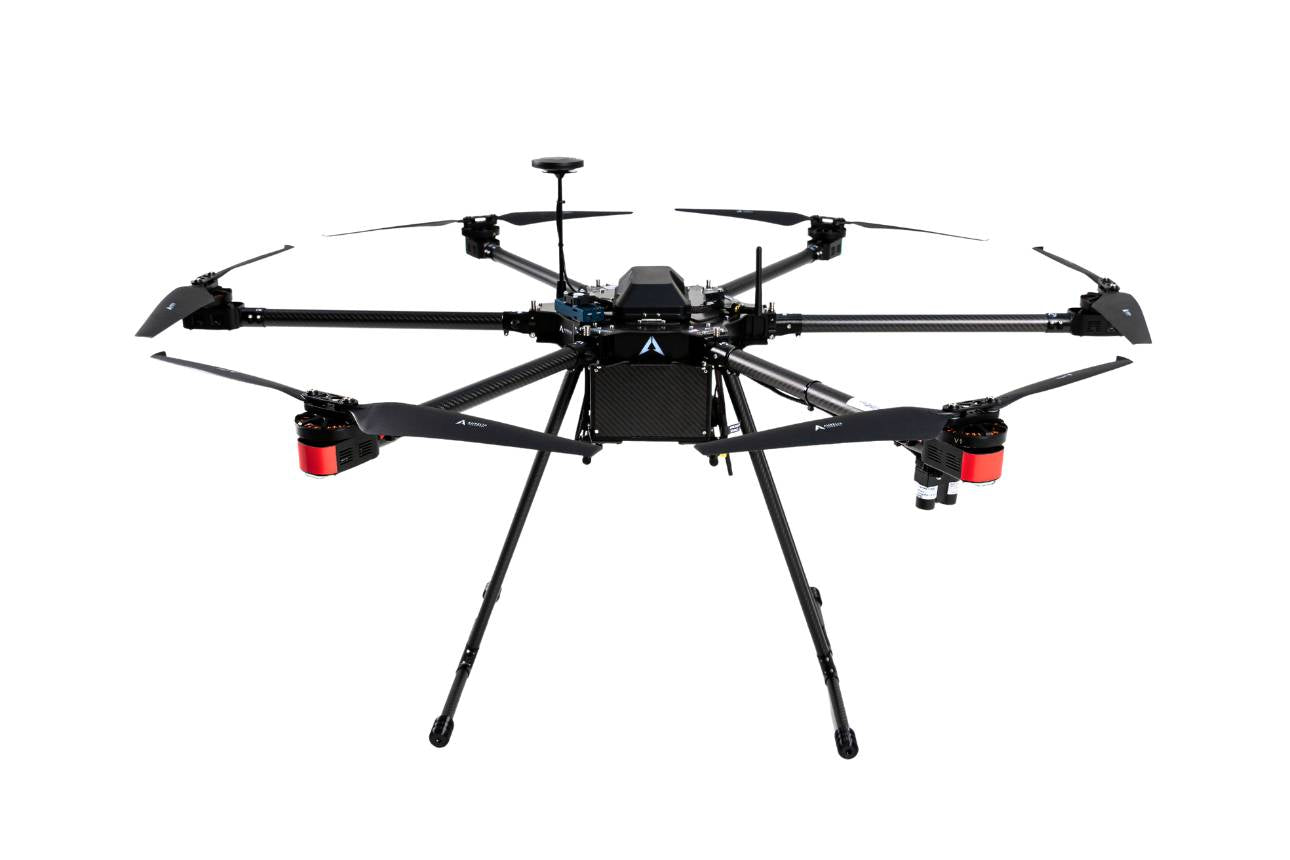

The Aurelia X6 MAX professional drone delivers exceptional versatility for commercial and industrial applications with payload capacity up to 6 kg (13 lb). This heavy-lift drone platform features a spacious payload bay designed for diverse professional drone missions.
Offering industry-leading flight performance, the X6 MAX achieves up to 70 minutes flight time depending on payload configuration. Built with open-source hardware and technology, this commercial drone ensures future-proof scalability and customization flexibility.
The X6 MAX arrives ready to fly with minimal setup requirements. Simply install your payload and deploy for immediate aerial operations.

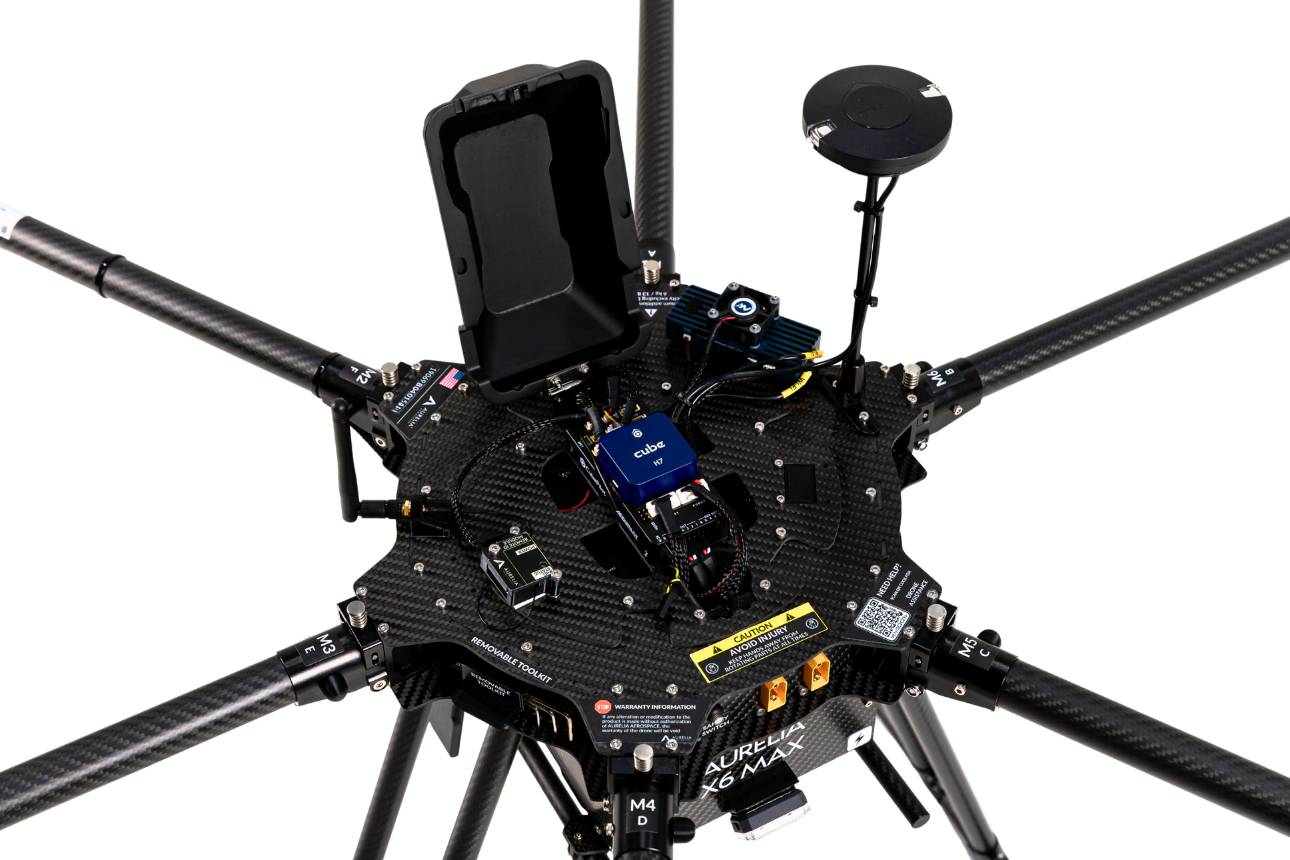

Pixhawk
Flight Controller
The Aurelia X6 MAX features an open-source Pixhawk flight controller*, offering endless possibilities to customize your drone for specific operational requirements. The standard configuration comes with ArduPilot software, though we can install PX4 upon request for specialized applications.
We offer both Cube Orange and Cube Blue flight controllers to meet diverse professional needs. You can learn more about both options in the detailed specifications below.
*The X6 MAX comes standard with the Cube Orange+ flight controller.

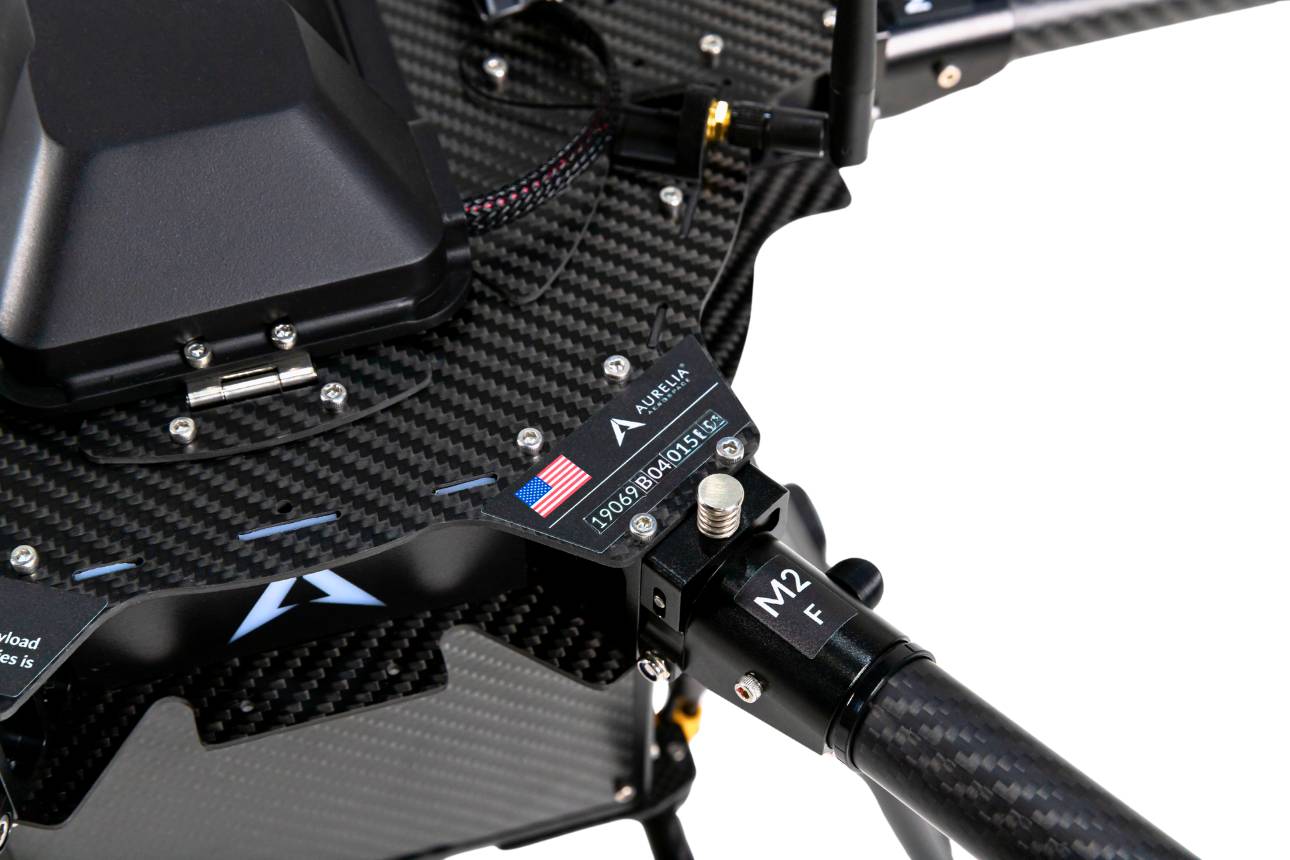

US-Made
Components
We are proud to support domestic supply chains throughout our professional drone manufacturing. The Aurelia X6 MAX extensively utilizes USA-made electronics and critical flight components across all major systems, ensuring superior performance and compliance standards.
The Cube Blue flight controller, advanced avionics, and essential onboard electronics are manufactured in California using American engineering expertise. This domestic manufacturing approach delivers the exceptional performance, reliability, and technological sophistication that defines Aurelia Aerospace drone systems.
The Aurelia X6 MAX meets both NDAA Section 848 and TAA compliance requirements for organizations requiring verified supply chain standards.


Field-Ready Design
and
Operational Efficiency

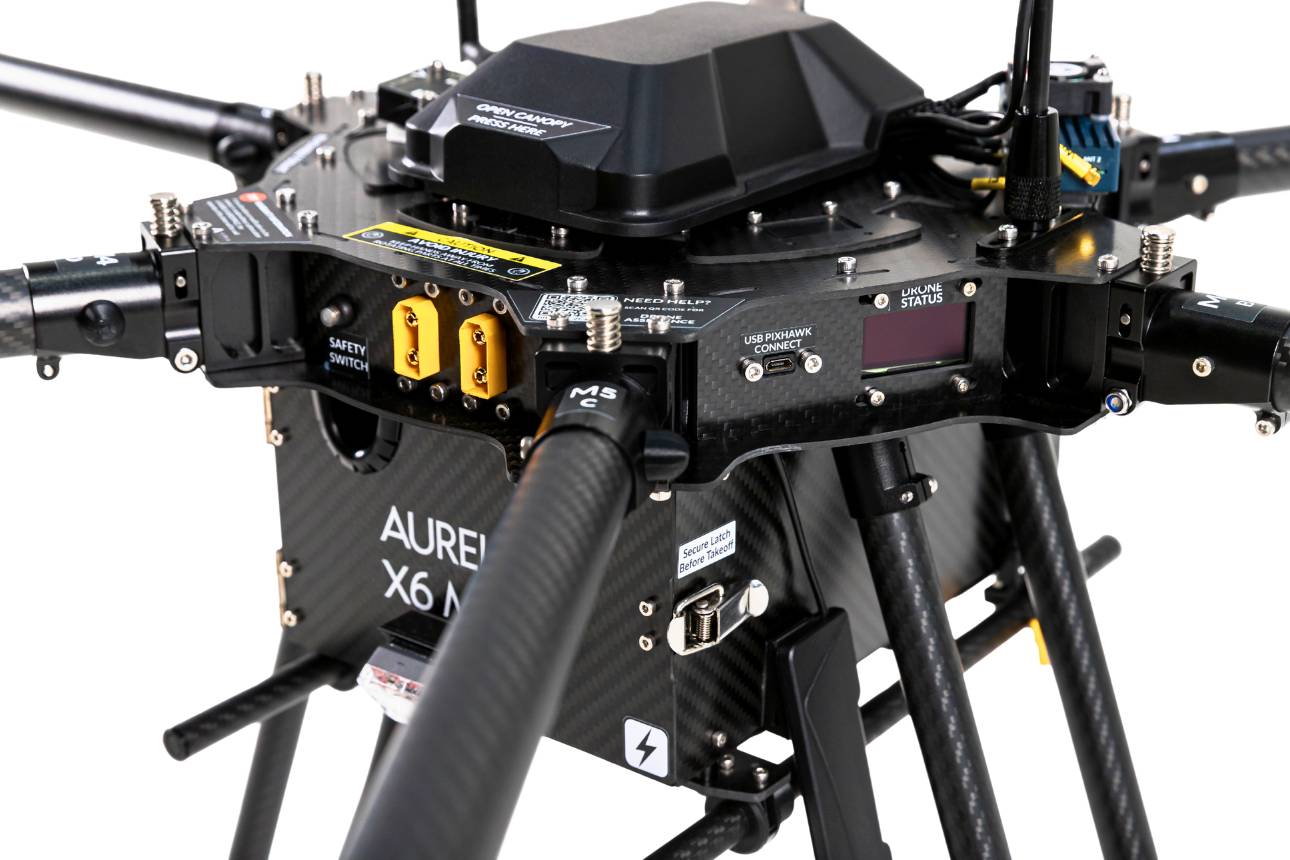

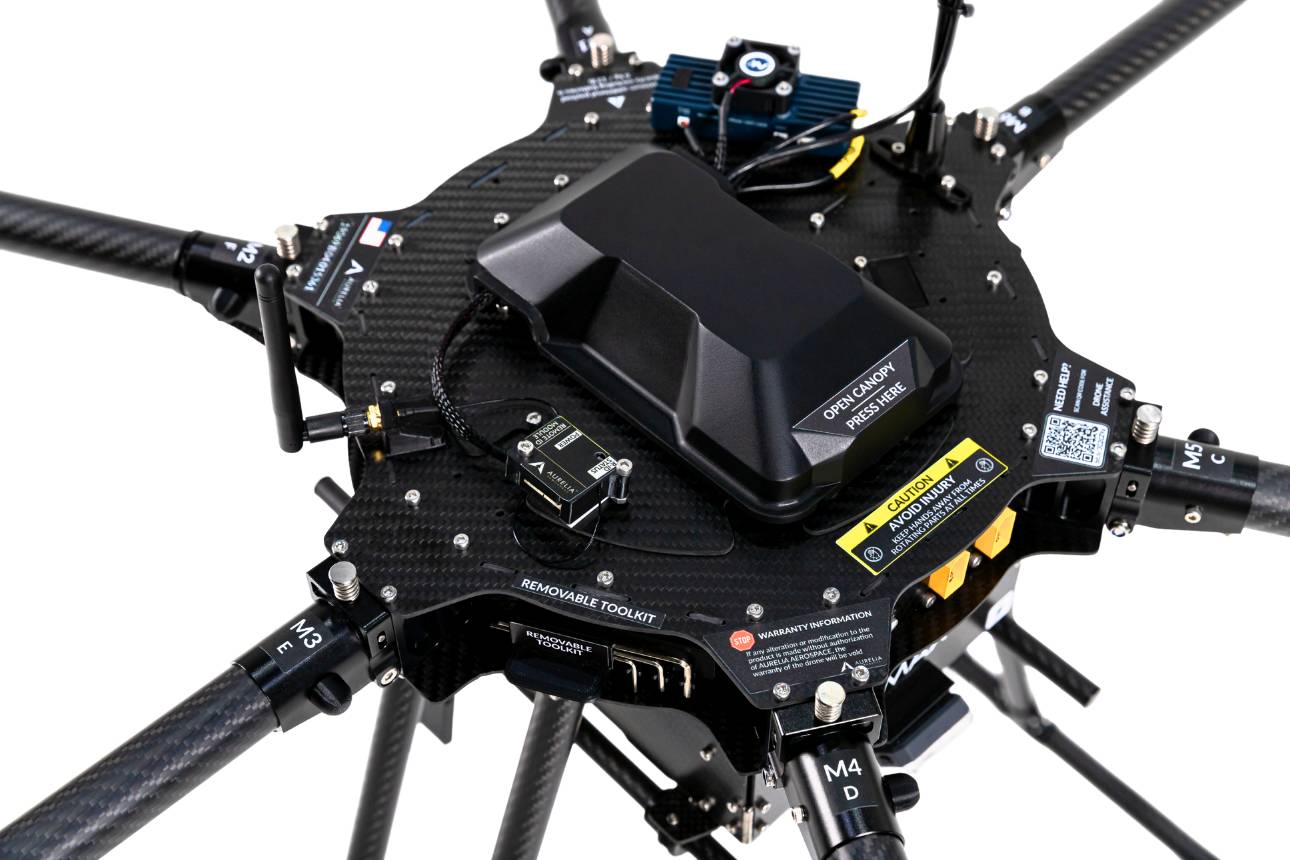

Designed for professional field operations, the Aurelia X6 MAX feature
s an integrated LCD status display positioned at the rear of the aircraft. This real-time display provides instant visibility of critical flight parameters including current flight mode, GPS satellite lock status, failsafe warnings, battery levels, and system diagnostics.

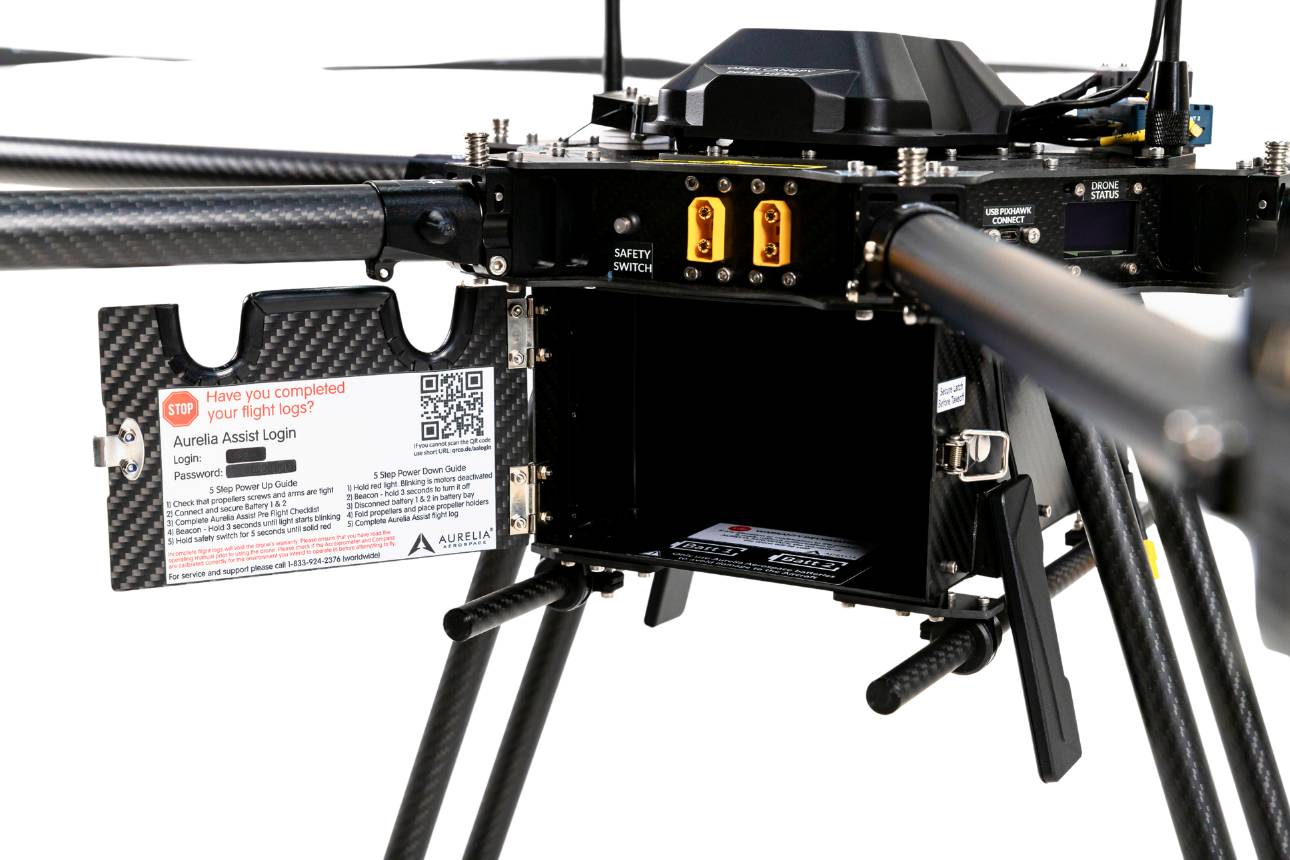

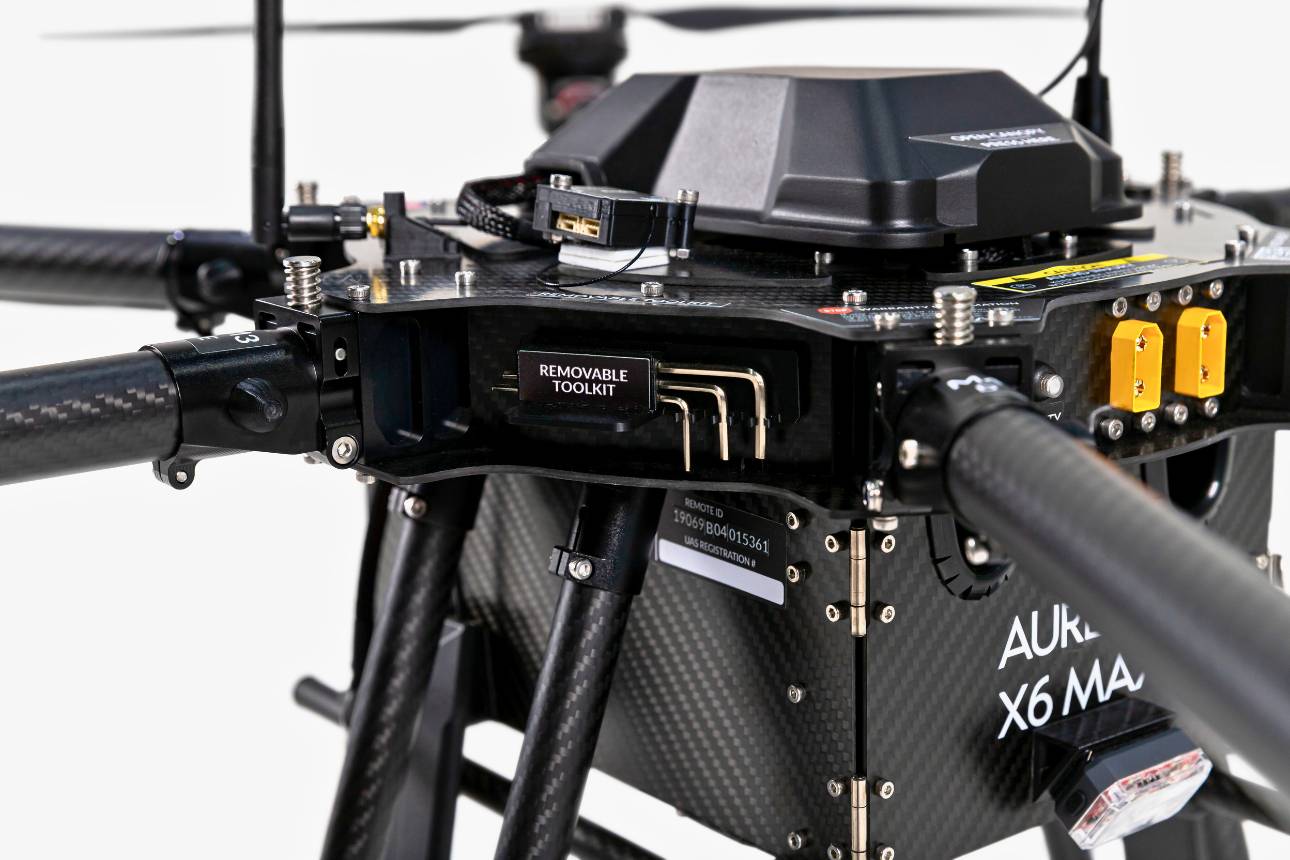

Enhancing field readiness, the X6 MAX includes an onboard mini toolkit containing all necessary hex wrenches specific to the aircraft. This integrated toolkit enables quick repairs, propeller swaps, and maintenance adjustments during field operations, ensuring mission continuity even when standard tools are unavailable.
These thoughtful design elements minimize downtime and maximize operational efficiency for professional drone deployments.
Flight Safety
and
Motor Redundancy

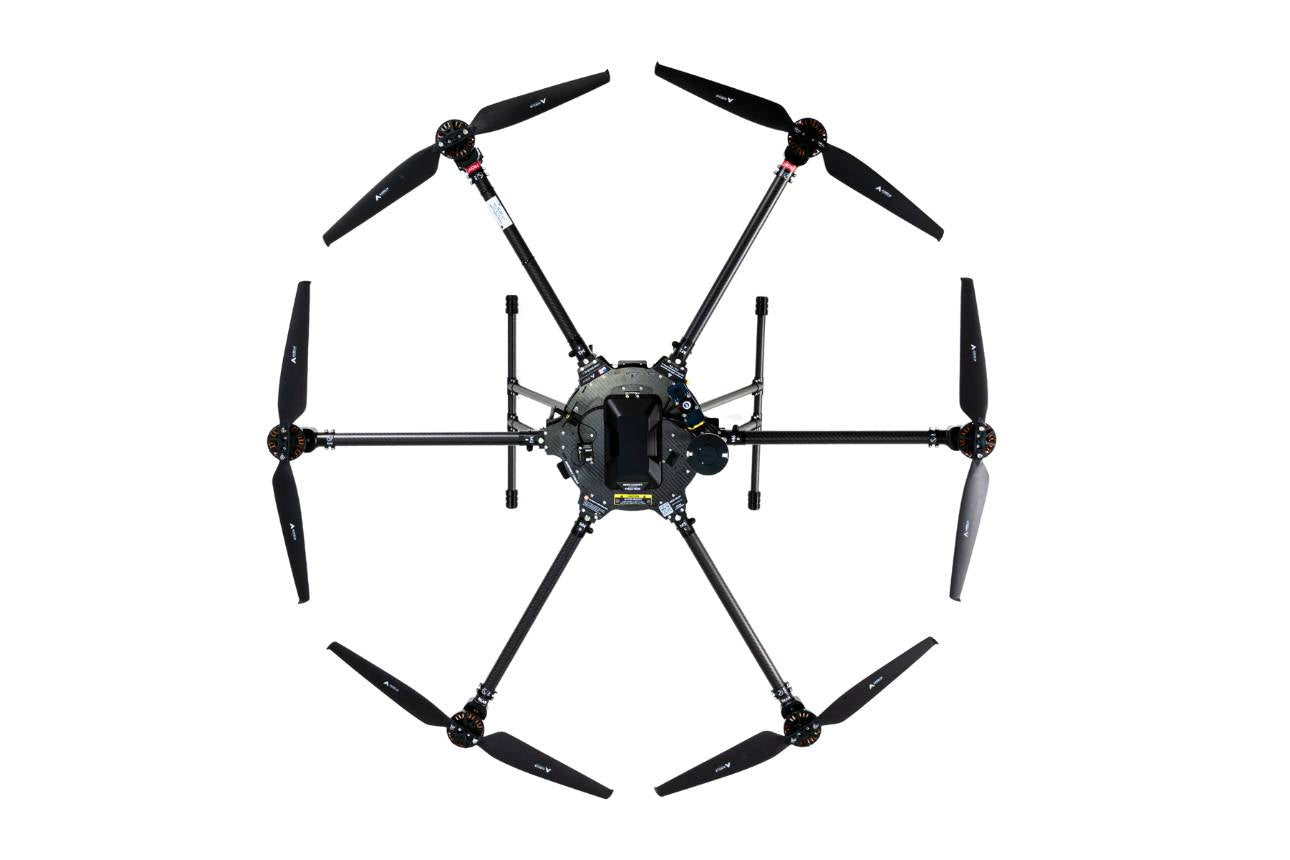

Traditional quadcopter drones face critical limitations when motor failure occurs, resulting in immediate loss of stability and potential aircraft loss. The Aurelia X6 MAX's hexacopter configuration provides superior safety through built-in motor redundancy.
With six independent motors, the X6 MAX maintains stable flight operations even during single motor failure scenarios. This redundancy system automatically compensates for motor loss, ensuring continued flight stability and safe mission completion.
This advanced safety feature provides operational confidence for critical missions where aircraft reliability and payload protection are essential.


Comprehensive Lifetime
Technical Support
The Aurelia X6 MAX includes comprehensive Lifetime Product Support at no additional cost, ensuring long-term operational success for your professional drone investment.
Upon delivery, one of our certified technicians schedules a personalized onboarding session to review aircraft systems, operational procedures, and address pre-flight questions. This ensures optimal setup and confident initial deployment.
Ongoing technical support remains accessible throughout the aircraft's operational life through our integrated QR code system. Simply scan the QR code on your airframe to instantly connect with technical specialists for troubleshooting, maintenance guidance, or operational support.
This lifetime technical support commitment protects your investment and ensures consistent operational readiness for critical professional missions.

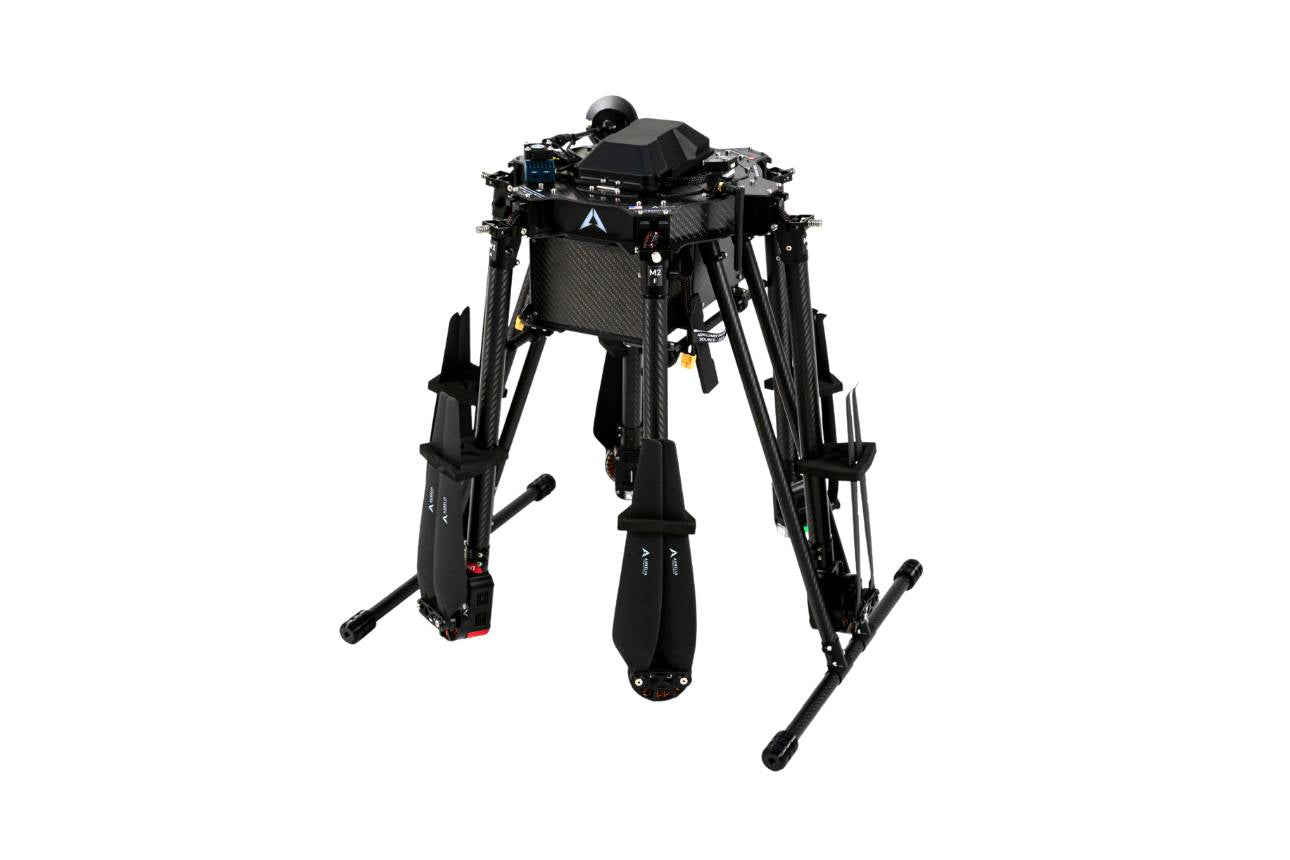

Rapid Deployment and
Transport Solutions
The Aurelia X6 MAX features an innovative quick-release folding mechanism designed for professional field operations. Each arm joint incorporates a precision-engineered release system that enables complete aircraft breakdown in under 30 seconds.
This rapid folding capability transforms the X6 MAX from operational configuration to compact transport mode with simple one-click activation per arm. The streamlined design optimizes portability for multi-site deployments and efficient equipment transportation.
Professional operators benefit from reduced setup time, enhanced mobility between mission sites, and simplified logistics for extended field operations.


Advanced Flight Modes &
Mission Planning Software
Unlock unlimited operational possibilities with over 20 specialized flight modes, including revolutionary swarm technology for simultaneous multi-aircraft operations. Every Aurelia aircraft features intelligent flight modes designed to tackle any mission with precision and efficiency.
Take control with industry-leading mission planning software. QGroundControl works across all devices with Google Maps integration, altitude control, and automated route programming, while Mission Planner offers enhanced professional features. Both free platforms maximize operational efficiency and adapt to your needs with unmatched flexibility.
Trusted by Leading Organizations Worldwide
As a platform relied upon by premier research institutions, Fortune 500 companies, and government agencies, Aurelia Aerospace has invested extensive engineering expertise into every aspect of our aircraft design.
Aurelia Aerospace is built on four fundamental pillars that embody our promise to deliver autonomous flight technology that exceeds expectations. Experience the difference that comes from partnering with a company dedicated to advancing autonomous flight technology.
- Reliability forms the foundation of our unwavering commitment, ensuring consistent mission success in demanding environments.
- Sophistication drives our integration of cutting-edge technology and intelligent systems.
- Performance delivers the power, endurance, and precision needed for critical applications.
- Versatility provides flexibility to tackle diverse missions with modular solutions that grow with your needs.
Try Before You Buy
Experience our drone technology risk-free with Aurelia Aerospace's 30-day trial program. We offer qualified businesses, government entities, and educational institutions the opportunity to evaluate our systems in real-world conditions at absolutely no cost, no prepayment, commitments, or deposits required.
Work with our drone specialists to identify the ideal platform for your requirements, and we'll arrange delivery of a complete system for evaluation. This hands-on experience allows you to validate performance and ensure our solution aligns with your operational needs before making any investment.
Contact our specialists today to discuss your trial program eligibility and get started.

6-Month Warranty
All Aurelia aircraft include a reliable 6-month comprehensive manufacturer warranty covering component failures during initial operations. An extended 2-year warranty option is also available for long-term investment protection.
Fly with confidence knowing your professional aircraft is backed by comprehensive coverage designed to keep you operational.

Mission Planning Software
Aurelia Aerospace is an official ArduPilot partner, utilizing the world's most advanced and reliable open-source flight software. ArduPilot continuously evolves through a global community of expert developers, ensuring optimal performance and reliability.
Experience cutting-edge flight control systems trusted by professionals worldwide.
EDU / GOV Pricing
Aurelia Aerospace offers exclusive pricing programs for educational institutions, government agencies, and non-profit organizations. Our solutions make advanced drone technology accessible for research, public service, and community initiatives.
Contact our representatives today to learn about institutional pricing and support options.

Specifications

If you have a payload that requires a larger space than the 430mm offered, please check our optional XL Landing Gear option offered at the bottom of this page. With the XL Landing gear option your payload clearance will increase to 550mm.
Specs | |
---|---|
Max Flight Time | 70 Minutes |
UAV Empty Weight | 4900g | 10.80 lb |
UAV Weight Incl Batteries | 9566g | 21.09 lb |
Payload Capabilities | 6000g | 13.23 lb |
UAV MTOW | 15566g | 34.32 lb |
Max Flight Speed | 35 mph | 56 km/h |
Max Wind Resistance | 20 mph | 32 km/h |
Max Service Ceiling | 3000m ASL |
Specs | |
---|---|
Operating Frequencies | 915 MHz (Worldwide) 433 MHz (Europe) 2.4 GHz (HereLink Ground Station Only) |
Operating Range | Standard: RFD900X - 3 mi (5 km) with HereLink - 9.3 mi (15 km) |
Battery Type | Standard: Lithium Ion (Li-Ion) |
Battery Capacity | 2x 27,000 mAh |
Battery Voltage | 22.2V |
Operating Temperature | -15C to +50C |
Data Link Encryption | AES-128: HereLink Black, Skydroid H16, HereLink Blue, and RFD900X AES-256: UXV Navigator Tab 3 |
Specs | |
---|---|
GPS | uBlox M9N |
GPS Constellations | GPS, GLONASS, Galileo, BeiDou, L2 Band (concurrently) |
Rangefinder LiDAR Accuracy | +/- 2.5 cm |
Rangefinder LiDAR Range | 0 - 40 Meters |
Compass | RM3100 |
Redundancy | 2 Accelerometer / 2 Gyroscope / 1 Mag |
ADS-B | uAvionix 1090 with a 12 mile (20 km) range |
Europe/UK Drone Class | C3 Class |
Export Control Classification (ECCN) | EAR99 |

Remote ID Compliant
All Aurelia drones are Remote ID compliant. Every Aurelia drone shipped to the USA includes a Remote ID module as standard equipment.
If you purchased an Aurelia drone previously, Remote ID units are also available for separate purchase and can be easily mounted on your existing drone to ensure compliance.

Advanced Operations Compliance - Canada
All Aurelia drones are certified with RPAS Safety assurance from Transport Canada, enabling advanced operations in controlled airspace (Class A-F) and flights near people with confidence.
Technical Documentation & Product Information
Ready to explore the full capabilities of Aurelia's professional drone systems? Access comprehensive technical resources including user manuals, engineering drawings, specifications, and operational guides for our complete aircraft lineup.
Whether evaluating a specific model or comparing our entire range, our documentation package provides everything needed for informed decisions.
Complete the form and our specialists will promptly send you the complete information package tailored to your requirements, or jump into our live chat to speak with a drone specialist directly.

Payload Railings
for Easy Mounting

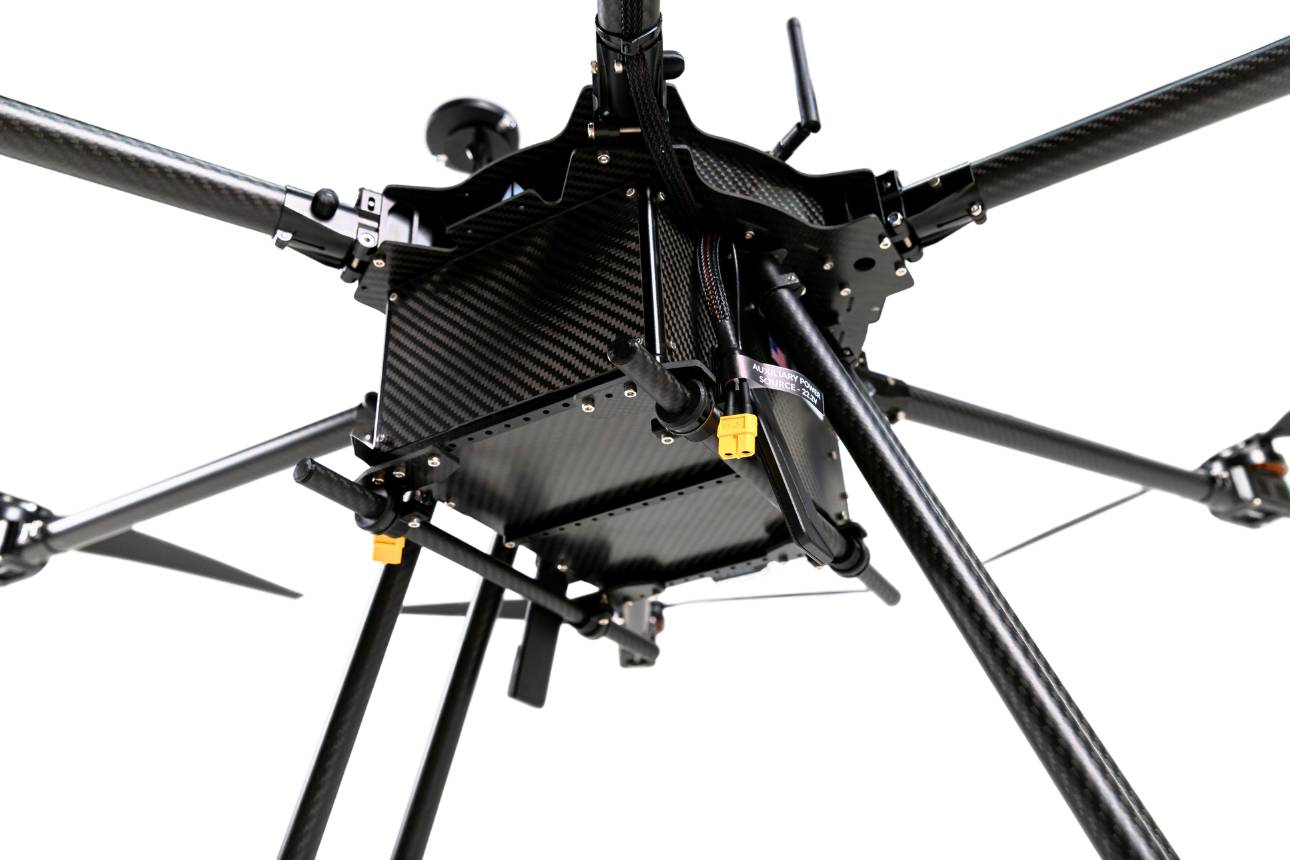

The Aurelia X6 MAX comes included with 2 payload railings installed under the battery bay. Attach payloads with ease by mounting your payload to the 2 rods, and adjusting the center of gravity as needed.
With one of our largest payload bays, the Aurelia X6 MAX gives you a high 430mm of clearance to install your equipment.

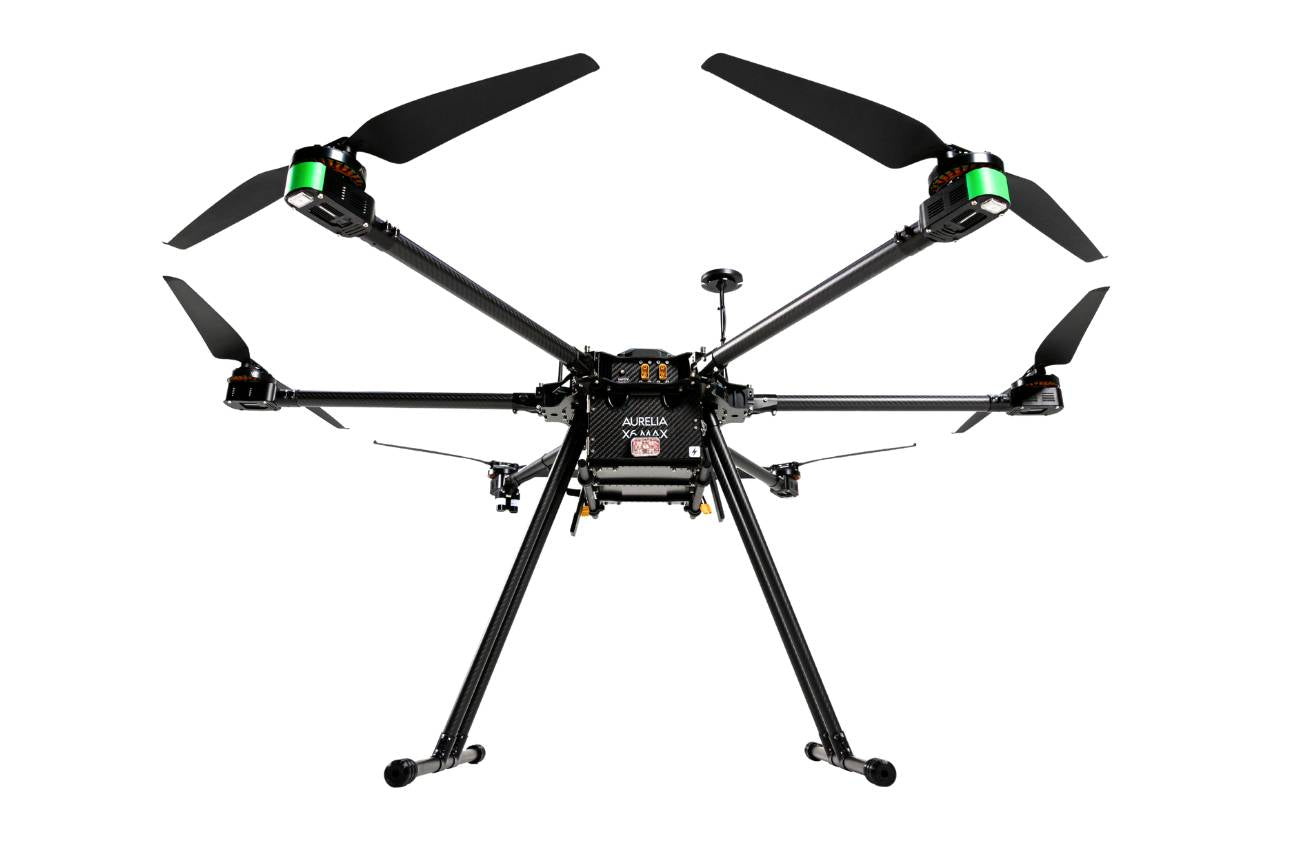

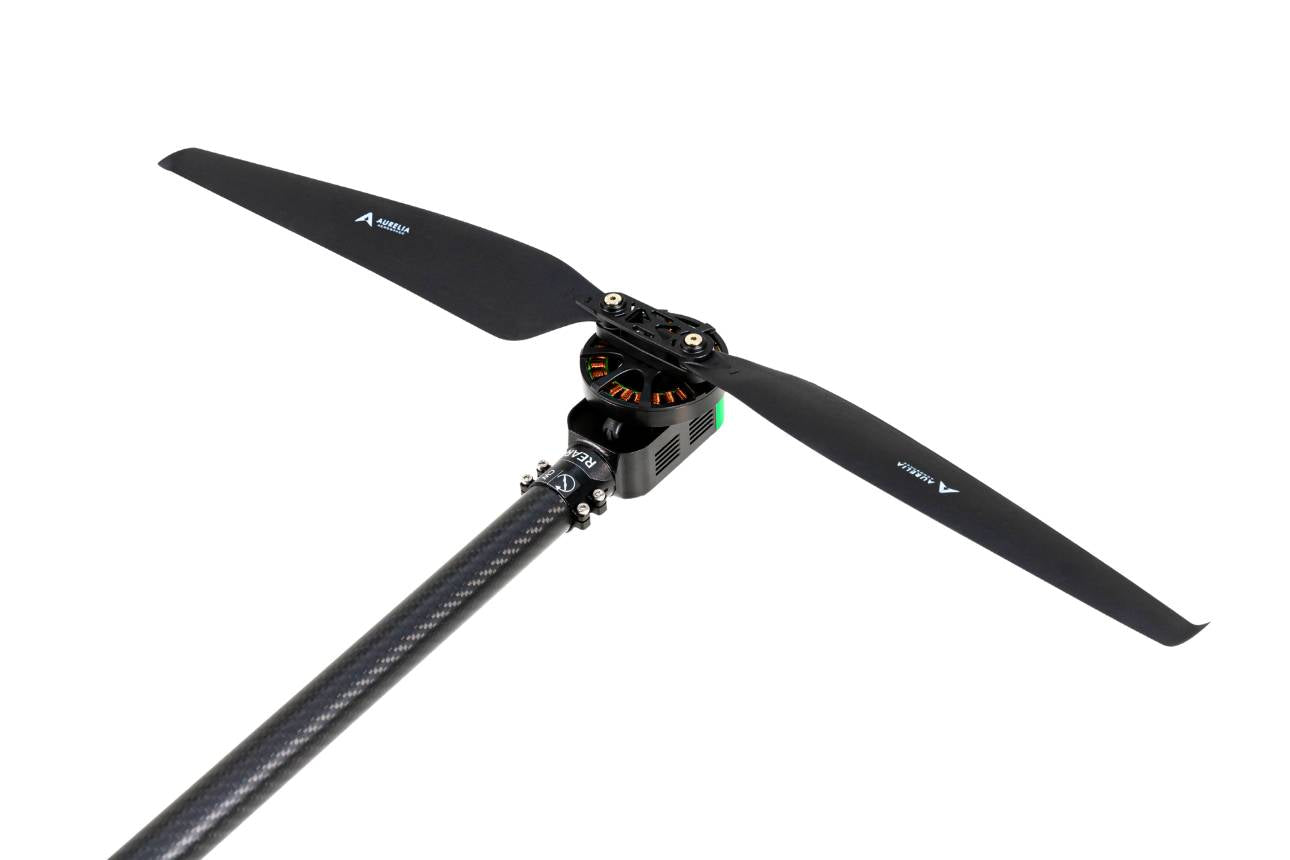

Motor Setup
Designed for
Reliability
The hexacopter design allows the Aurelia X6 MAX to operate with only 5 motors, allowing for increased reliability and protection of your payload in the event a motor gets damaged. In the event the Aurelia X6 MAX is involved In a crash, the propellers are designed to shear, protecting the motors and electronics from costly damage.

Precision Flying

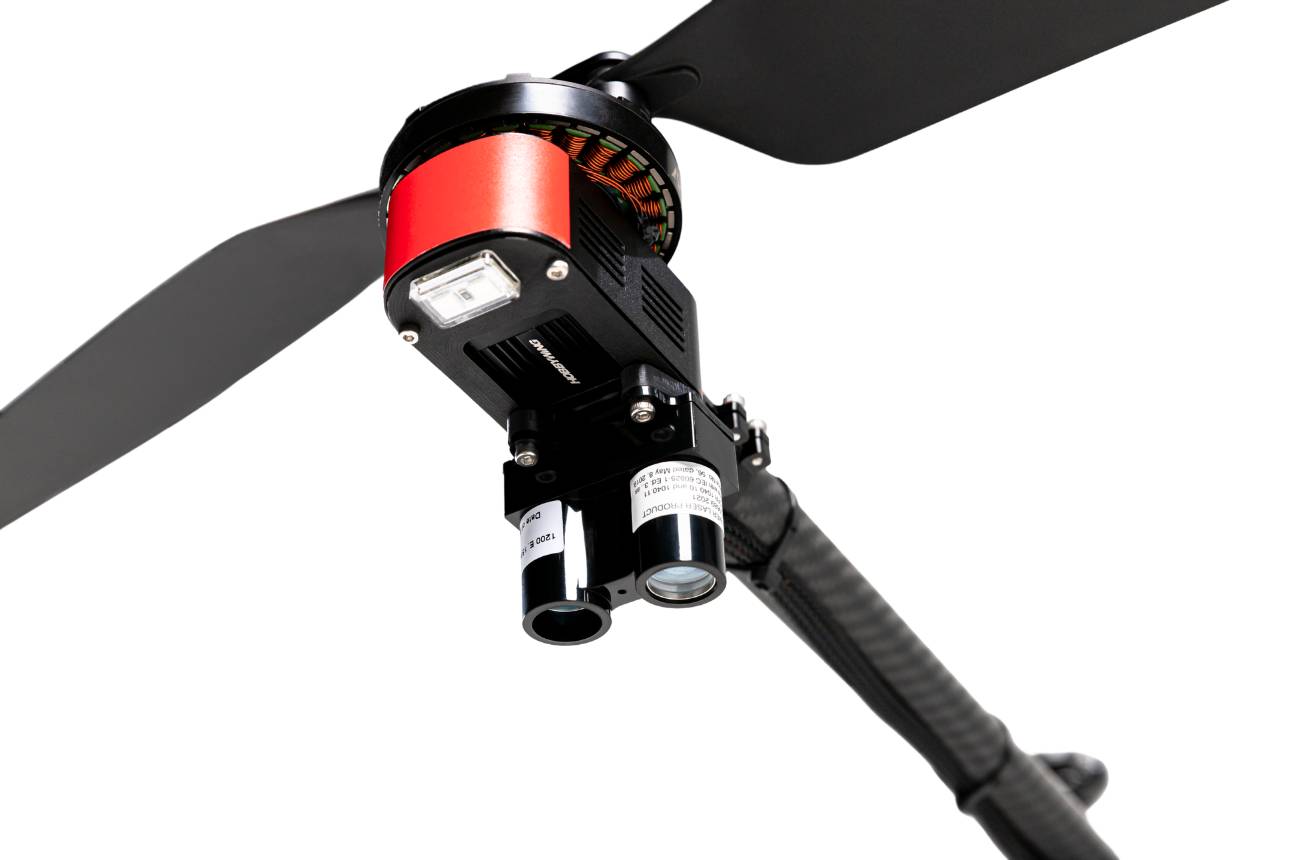

The inclusion of a rangefinder LiDAR gives the Aurelia X6 MAX an accuracy of 2.5 cm in the vertical axis up to an altitude of 40 meters, allowing for smooth landings and steady flying at low altitudes.

Aurelia Assist™
Enhanced Drone Operations
(including Ray-Ban Meta)
Your Co-Pilot on the Ground and in the Sky
Aurelia Assist™ is your comprehensive flight companion that guides you through every stage of your drone operation.
From pre-flight safety checklists to post-flight analysis, this intelligent assistant ensures you never miss a critical step. Access user manuals, international drone regulations, and operational guidance hands-free while maintaining full focus on your flight. Capture important moments with in-flight recording and receive real-time alerts and flight data directly in your field of view.
With Aurelia Assist™ as your trusted flight companion, every mission becomes safer, more efficient, and expertly guided from takeoff to landing.
- Digital Logbook: Track flights, pilot information, mission details, and maintenance records automatically.
- Hands-Free Recording: Document operations and capture support footage using compatible smart glasses.
- Live Weather Updates: Get real-time wind, visibility, and temperature information for better planning.
- Drone Regulation Access: Quickly reference relevant drone regulations within the app.
- Remote Support: Enable diagnostics and connect with support teams for assistance.
Travel Case Options
Aurelia Drones In Action
What's Standard Included?
When you select a Starter Bundle, these essential components come standard to get you operational right away.
Please note that purchasing the aircraft alone does not include these items.
They are specifically part of our comprehensive bundle packages designed for immediate deployment.
Contact our drone specialists to learn more about individual aircraft pricing versus bundle options.
Find the perfect configuration for your needs.

- 1x Aurelia X6 MAX UAV
Configured & Ready To Fly - 2x Aurelia 27,000 mAh 6S 22.2V
Li-Ion Batteries - 1x Fast Charging LiPo Balance Charger
- 2x LiPo Firesafe Storage Bags with Handle

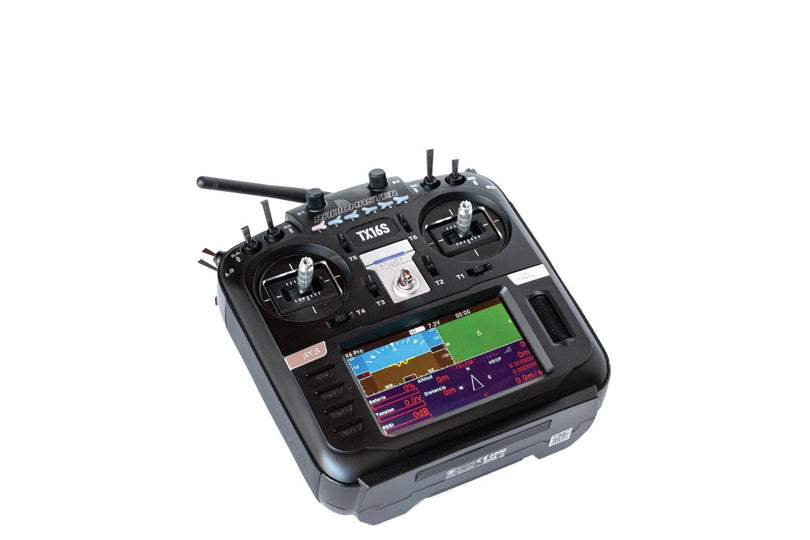

- 1x Radiomaster TX16S Controller
(Radiomaster Option) - 2x 18650 Li-Ion Controller Batteries
(Radiomaster Option) - 1x Radiomaster TX16S Transmitter Case
(Radiomaster Option) - 1x Aurelia Aerospace Safety Vest
- 1x Aurelia Aerospace Lanyard
- 2x Aurelia Aerospace Stickers
- 1x Mini Tool Kit
- 6x Propeller Arm Holders
- 1x Ground Telemetry Radio
(915 MHz / 433 MHz (EU)) - 1x 8GB Micro SD Card
- 1x Cleaning Cloth + Airframe Cleaner
Configure Your Selected Aircraft
in 6 Easy Steps
If you need assistance configuring your selected Aurelia aircraft or have questions about any available options, don't hesitate to reach out to our drone specialists.
Our expert team is ready to guide you through every step of the configuration process and help you select the perfect setup for your specific operational requirements.
1 - Choose Your Bundle
Starter Bundle

- All of the items above

Explorer Bundle


All of the items in the first image, plus the following in the second image;
- 1x Travel Case + AirTag
- 1x Additional Battery Set (2 pcs)
- 2x LiPo Battery Bags
- 1x Spare Propeller Set (6 pcs)
- 3x Propeller Protection bags
- 1x Aurelia Drone Landing Pad

Save $620 with the Explorer Bundle
Ultimate Bundle


All of the items in the first image, plus the following in the second image;
- 1x Travel Case + AirTag
- 2x Additional Battery Sets (4 pcs)
- 4x LiPo Battery Bags
- 2x Spare Propeller Sets (12 pcs)
- 6x Propeller Protection bags
- 1x Aurelia Drone Landing Pad

Save $580 with the Ultimate Bundle
2 - Optional Services

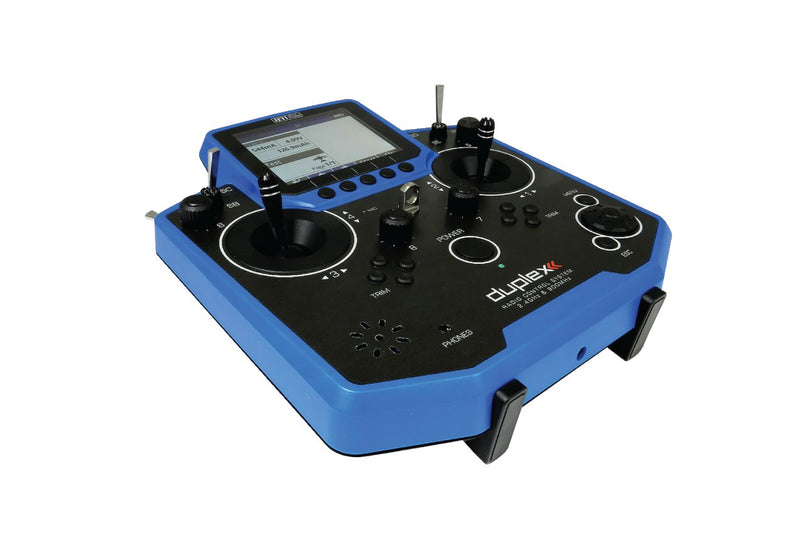

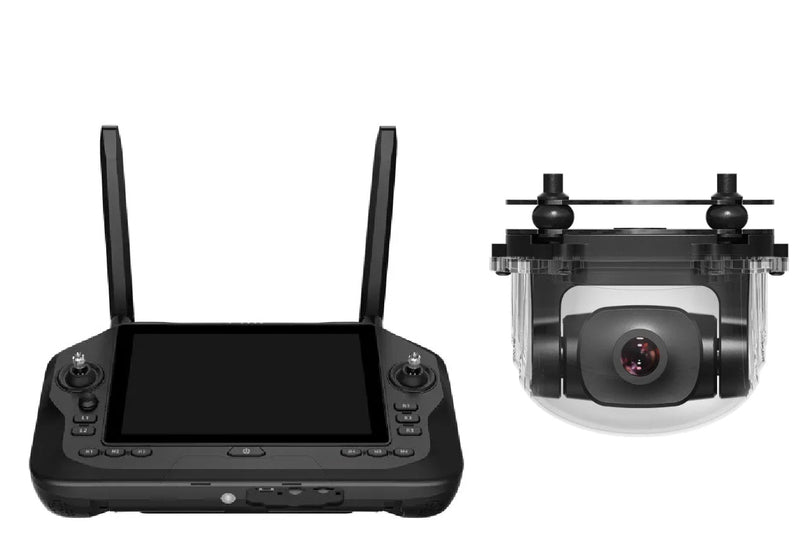

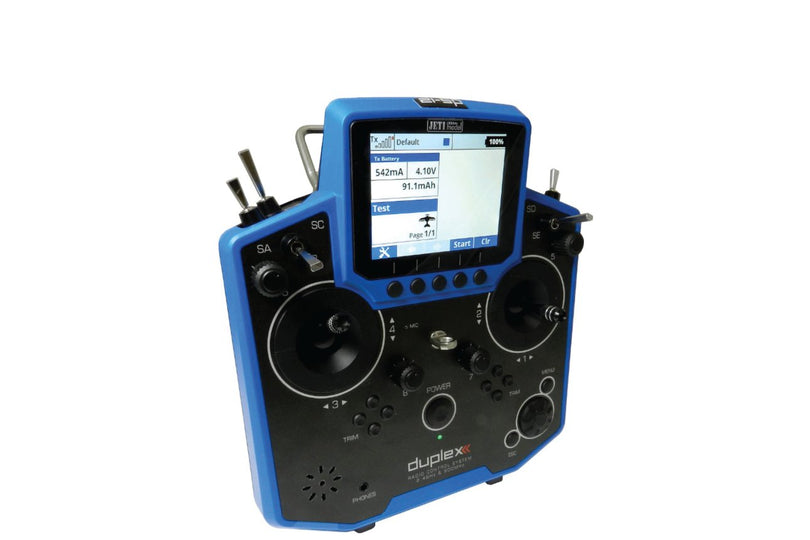

3 - Choose Your Transmitter
4 - Choose Your Flight Controller
5 - Choose Your Payload
Professional Drone Payloads &
Custom Engineering Solutions
Enhance your drone operations with our professional-grade payloads for aerial photography, medical deliveries, surveying, and agricultural sensors. Our engineering team creates custom solutions tailored to your specific operational needs.
From imaging systems to delivery mechanisms, we provide cutting-edge technology that elevates your business. Whether conducting inspections, medical transport, agriculture, or surveying, our specialists engineer the perfect solution for you.
Contact our payload experts today to discuss your requirements and discover how our innovative solutions can transform your aerial operations.

6 - Additional Parts & Accessories
The following are additional parts and accessories for your selected aircraft.
If you have any questions about configuring these, please do not hesitate to reach out to one of our drone specialists.
